  • SGMQ-320 Multi Functional Two-heads Die Cutter
SGMQ-320 Multi Functional Two-heads Die Cutter
HomeProducts > Die Cutter
Product Introduction
Print this page Send email Product Inquiry


Performance and characteristics


 SGMQ-320 Multi FunctionaITwo-heads Die Cutter is the newest innovation and design. lt's easy operated and stable performance. Material feeding is controlled by the servo motor and operated by touch screen. Automatic paper feeding, Laminating, hot stamping, die cutter, automatic sheet or rewinding can be completed in one pass. And all are controlled by PLC, and 2nd pass sensor for tracking mark, The machine occupies small area, lower noise, high speed, precise die cutter etc. Unwinder and rewinder air shaft are controlled by separate motor.This machine is a best and efficient machine for the electronics industry and IT industry. It used for electronic, electrical equipment, mobile, special rubber pad,silicone paste, grinding paste, conductive tape, double face tape, LED, and plastic film.



Technical Specification



Model

SGMQ-320

Max. Web width

320mm

Max die cutter length

320mm x 290mm

Die cutter speed

1800-12000pcs/h

Overalldimensions (L×W× H )

3120X1270X1890mm

Die cuter mold height

20mm

Max. die cutter pressure

5 Tons

Power

AC 380V5.5 kw

Machine weight

3800kgs

Notes: With the viriation of the length to be printed. machine speed should be changed

*its overall dimension and manufacturing Process are subject to change without further notice

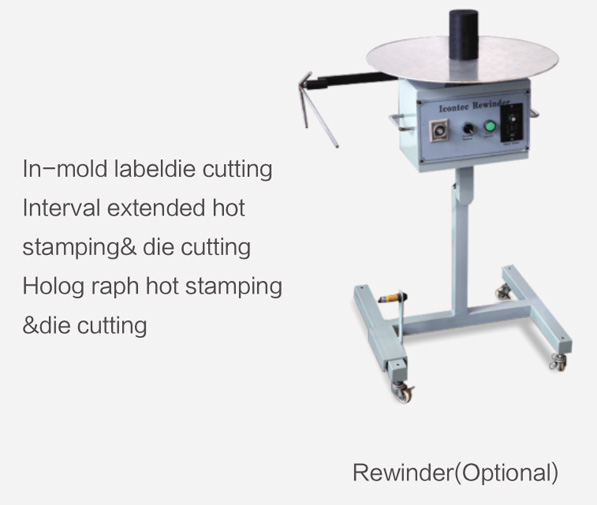

Optional
